Item specifics
  • Print Speed: 40ppm
  • Application: Public Usage
  • Black Print Speed: 300mm/Seconds
  • Products Status: Stock
  • Brand Name: WERESE
  • Style: Black And White
  • Dot Matrix Printer Type: Ticket printers
  • Use: Receipt Printer
  • Launch Date: 2011
  • Consumable Type: Separate Toner
  • Paper Feed Mode: Automatic and manual
  • Color Print Speed: NO
  • Double-sided Printing: No
  • After-sale Service: National Joint Guarantees
  • Type: Dot-matrix
  • Voltage: 100-240V
  • Max. Resolution: 203dpi
  • Weight: 2.3kg
  • Internal Memory: 2MB
  • Supports Network Printing: Wired/Wireless
  • Model Number: AIBAO A-80USH
  • Size: 145x195x148mm
  • Interface Type: USB Serial Ethernet port
  • Max Paper Size: 80mm
  • Max Paper Size: 80mm
Product Description





80mm thermal printer receipt Small ticket barcode printer A-80USH POS automatic cutting Printer USB Ethernet port 250mm/Seconds

core thermal receipt printer, is a high-end appearance, new varieties of high cost, there are beautiful shape, but also has excellent quality.To meet your various printing needs, provide strong support.


Functional characteristics
 --Support for a variety of international languages and scripts
-- Support print job tips and error alarm function
-- driving high-speed download and print mode, supports Linux system drive
--Support black mark detection function
--Increase avoid "missing orders" function
--Supports Ethernet and
  Serial    port monitoring function
--download store and print Logo trademark
--Support 256K Bytes NV Logo download store and print Logo trademark

Technical parameters:
Print
   Printing method Direct thermal line
   Print width 72mm paper width
   Point density 576 dots / line, or 512 dots / line
   Printing speed 250 mm / se

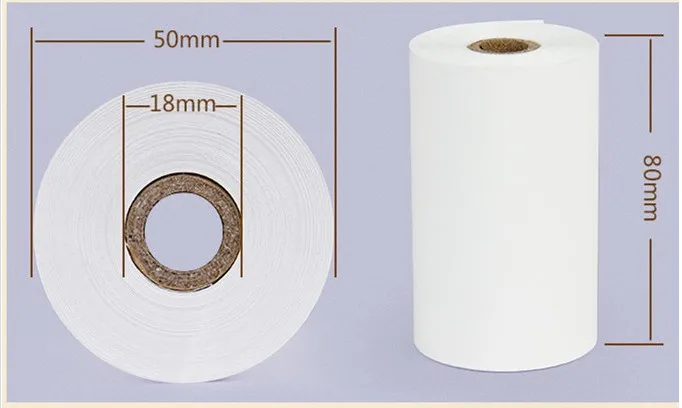

   Paper 79.5 ± 0.5 mm × φ83 mm
   Line spacing 3.75 mm (available command to adjust line spacing)
   Number of columns
  80mm paper: 80mm Paper: Font A - 42 columns or 48 / Font B - 56 columns or 64 / Jane, Traditional --21 column or 24
   Character size
  ANK character, Font A: 1.5 × 3.0mm (12 × 24 points)
Font B: 1.1 × 2.1mm (9 × 17 dots)
Simplified / Traditional: 3.0 × 3.0mm (24 × 24 points)
   Barcode characters
   Extended character table PC347 (Standard Europe), Katakana,
PC850 (Multilingual), PC860 (Portuguese),
PC863 (Canadian-French), PC865 (Nordic),
 West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866 (Cyrillic # 2), PC852 (Latin2), PC858, IranII, Latvian, Arabic, PT151 (1251)
   Barcode Type UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) /
   CODE39 / ITF / CODABAR / CODE93 / CODE128
   Cutter

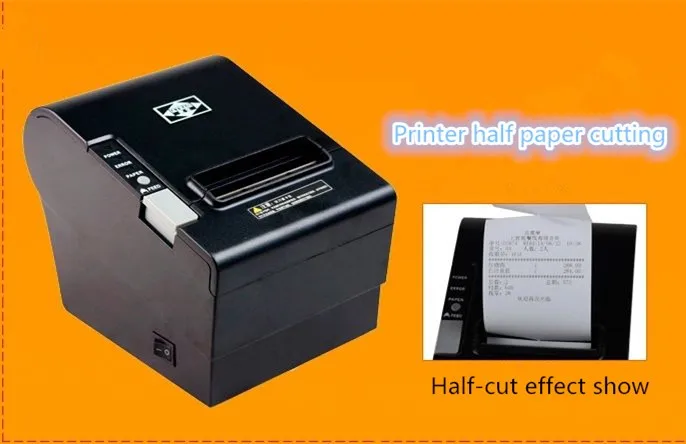

   Full or semi-automatic cutter cut optional
   Buffer
   Input buffer 64k bytes
   NV Flash 256k bytes
   Power supply
   Power Adapter Input: AC 110V / 220V, 50 ~ 60Hz
   Power Output: DC 24V / 2.5A
   Cash Drawer Output DC 24V / 1A
   Physical Characteristics
   Weight 1.3 kg
   Dimensions 145 × 195 × 148 mm (L × W × H)
   Environmental Requirements
   Working temperature: 0 ~ 45 , Humidity: 10 ~ 80%
   Storage temperature: -10 ~ 60 , Humidity: 10 ~ 90% (non-condensing)
   Lifetime
   Cutter life one million times
   100 km printhead life
   Interface Type:    USB Serial Ethernet port

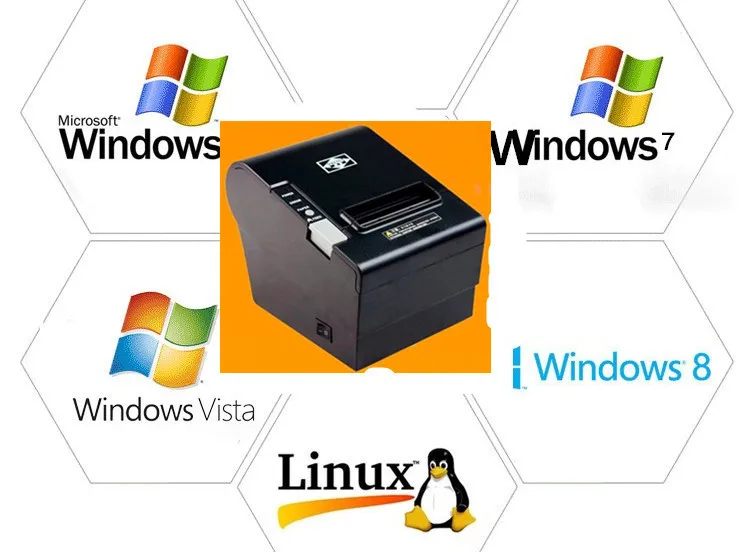

   driver system:     win 7/ Win 8     Win XP/    Win 9X/ Win ME/ Win 2000/ Win 2003/Win Vista
TB23brXaXXXXXcGXXXXXXXXXXXX-745181339
TB2kmtebVXXXXblXpXXXXXXXXXX-751556985   TB29NNvbVXXXXXyXXXXXXXXXXXX-751556985   TB2qE8kbVXXXXXlXpXXXXXXXXXX-751556985


TB2Vnm9aXXXXXauXpXXXXXXXXXX-745181339
TB2xVEnbFXXXXaaXXXXXXXXXXXX_!!745181339

TB2aSJrbVXXXXaBXXXXXXXXXXXX-751556985

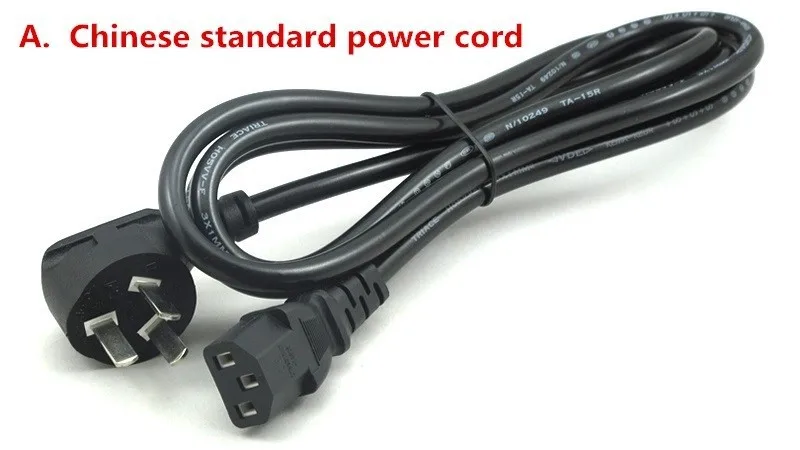

Power cord type selection:If you do not select "power cord types", will be equipped with "A.  China standard power cord" . So when ordering please indicate the "power cord type:A?B?C?D?"

Product range:






TB2OnaohVXXXXbIXXXXXXXXXXXX_!!745181339

image1848865191_13736928031848865191_137369280

Packaging Details
  • Unit Type: piece
  • Package Weight: 4.8kg (10.58lb.)
  • Package Size: 25cm x 19cm x 18cm (9.84in x 7.48in x 7.09in)
